 性能特點
  Performance Characteristics

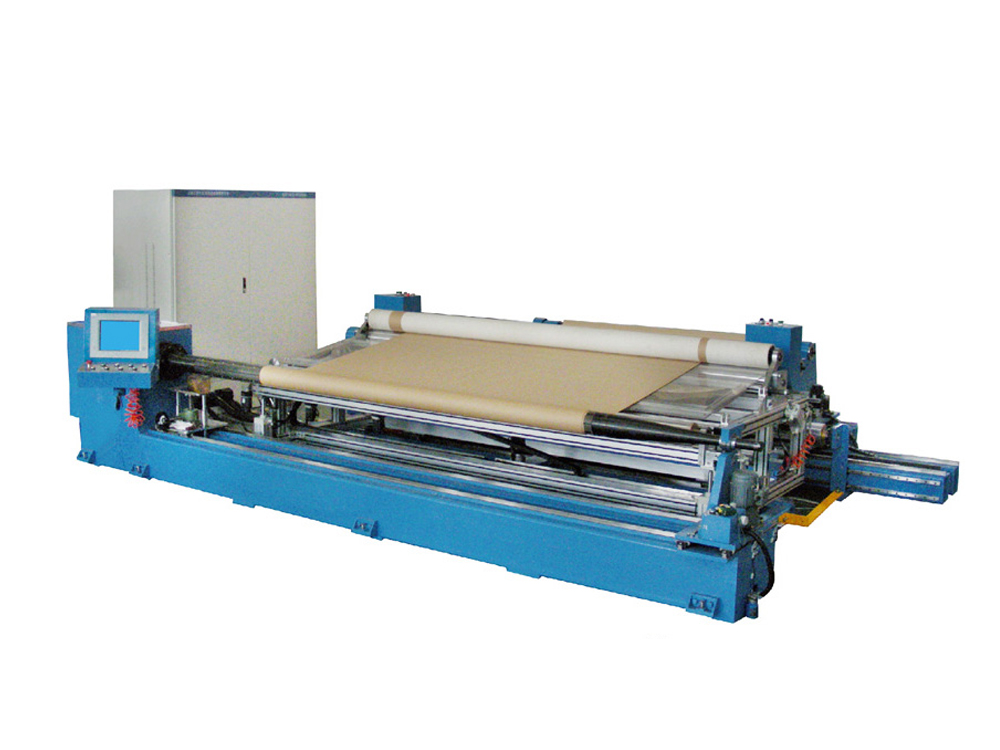

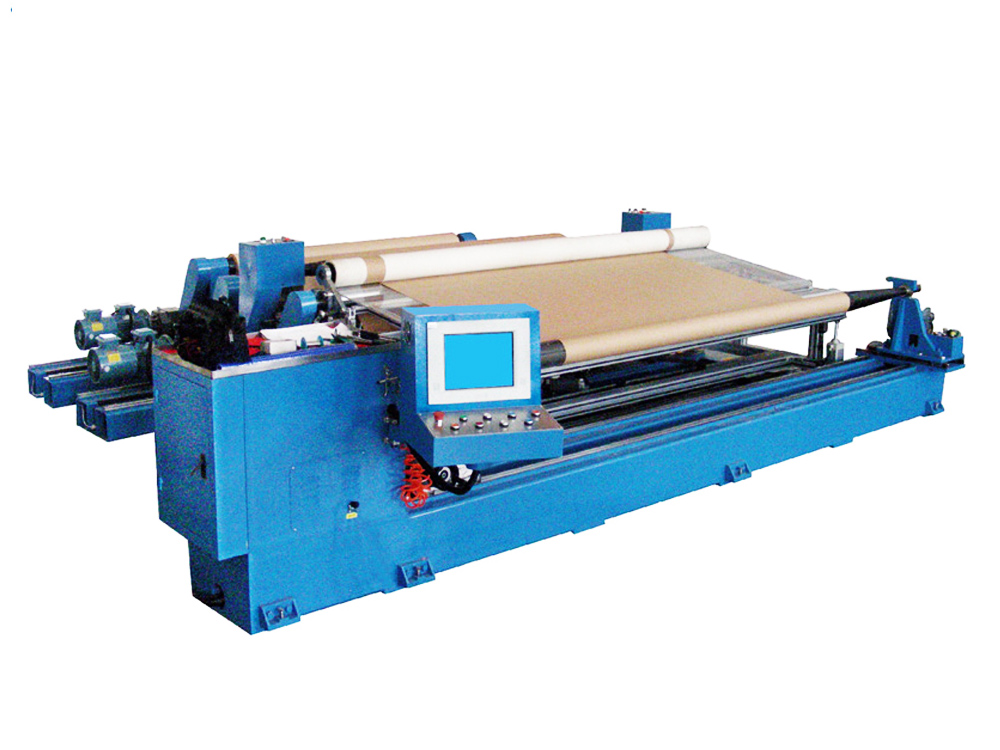

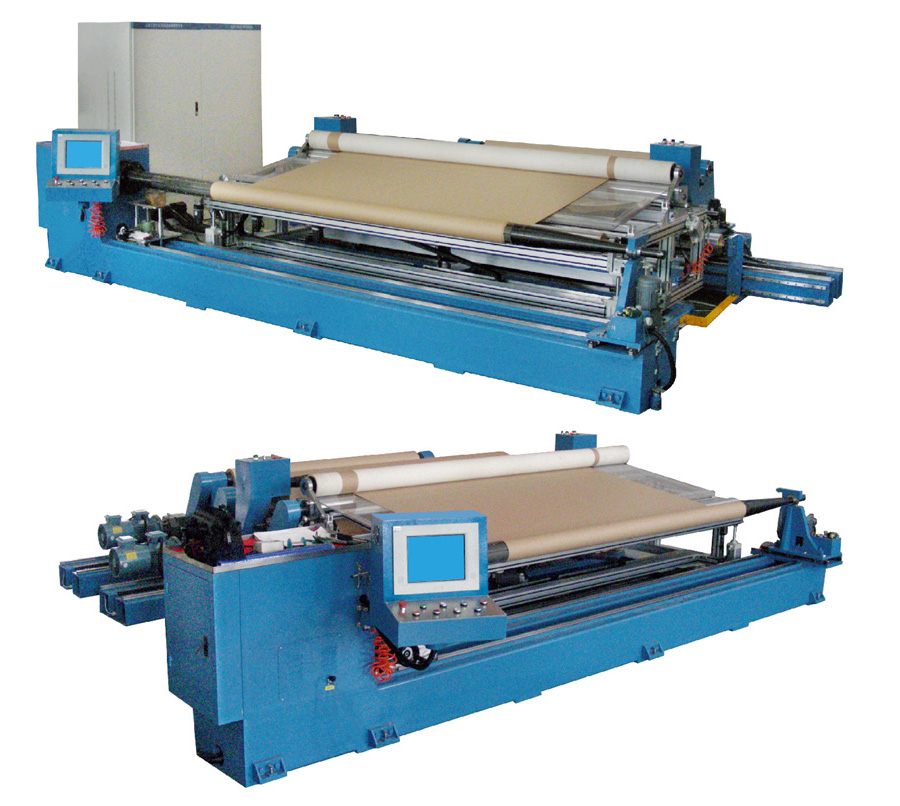

    該設備用于VPU電壓互感器絕緣紙筒的卷繞，電壓等級涵蓋72.5KV-550KV所有產品。
     This machine is suitable winding the VPU voltage transformer tube for the 72.5Kv-550Kv products.

 技術參數
  Technical parameters

 絕緣紙筒內徑
  Inner of the tube

 124mm

 絕緣紙筒最大外徑
  Max external diameter of the tube

 350mm

 絕緣紙筒長度范圍
  Width of the tube

 1010mm—3648mm

 紙筒臺階數
  The steps of the tube

 1—6 個

 最少主屏數
  Min screens

 9 個

 最多主屏數
  Max screens

 33 個

 用紙寬度
  Width of the raw paper

 1 米、2 米、3 米

 紙輥內徑
  Inner of the raw paper

 76mm

 紙輥?zhàn)畲笸鈴?br />   Max external diameter of raw paper

 700mm

 紙筒最大重量
  Weight of the tube

 200kg

 設備最大轉速
  Max speed of the machine

 80rpm

 設備工作轉速
  Max working speed

 40-50rpm

 設備中心高度
  Height of the machine

 800mm
